Display
Brightness (ANSI lumens)
3600
Native Resolution
XGA (1024x768)
Native Aspect Ratio
4:3
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Optical
Throw Ratio
1.96~2.15
Zoom Ratio
1.1x
Lens
F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height)
110%
Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
Compatibility
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

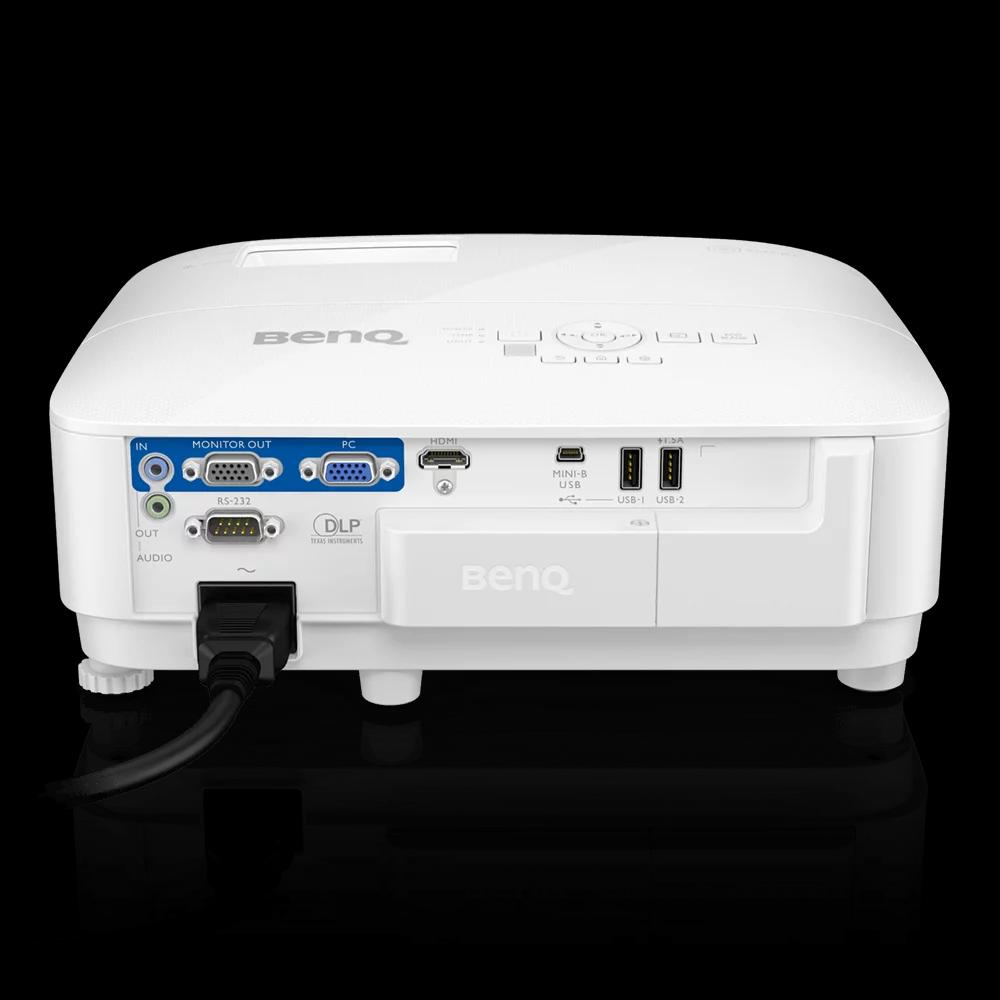

I/O Interface
PC in (D-sub 15pin)
PC in-1 (shared with component video)
Monitor out (D-sub 15pin)
HDMI in
USB Type Mini B
(x1), USB Type Mini B-1(service/Page up&down)
Audio
Audio in (3.5mm Mini Jack)
Microphone in (Mini Jack)
Dimension & Weight
Dimensions (WxHxD) (mm)
296 x120 x232
Net Weight (kg)
2.5 kg(5lbs)
Projection System
Projection System
DLP
